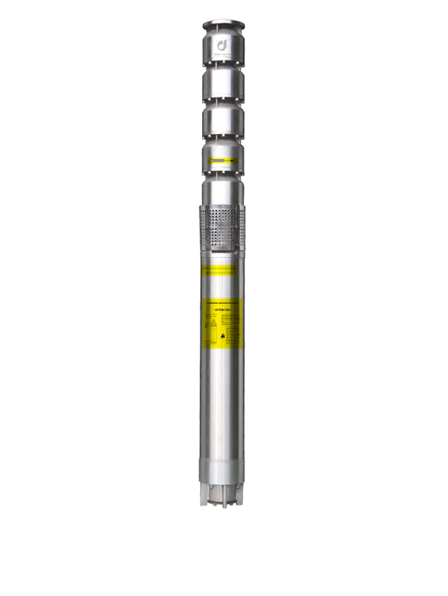

| 10 Inch Precision - Cast Stainless Steel Pump | |||||||
Pump/Motor： |
|||||||
| NEMA standard | |||||||
| Protection grade: IP68 | |||||||

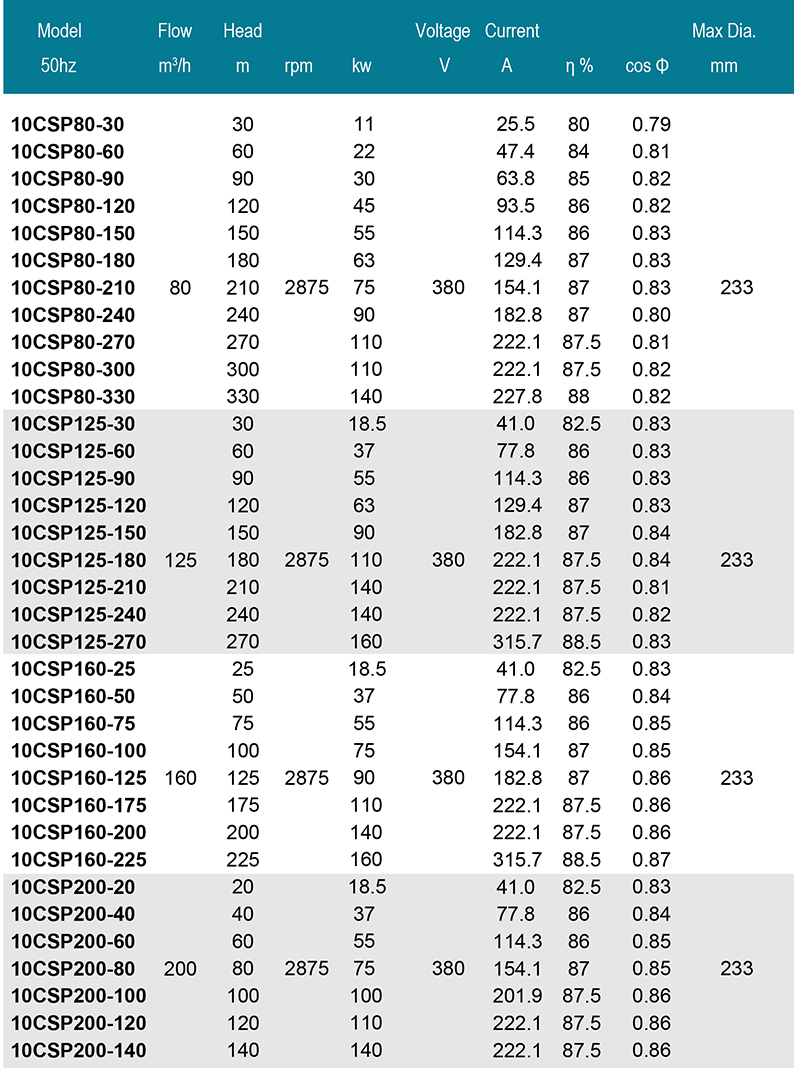

| Type | 10CSP80 |
10CSP125 |
10CSP160 |
10CSP200 |
Maximum temperature of liquid:35°C | ||
| Normal flow(m3/h) | 80 | 125 | 160 | 200 | Power: 11kw - 140kw | ||
| Outlet size | 4' | 4' | 5' | 6' | Pump is Precision - Cast stainless steel | ||
Part |
Material |
| Pump body | AISI304 |
| Impeller | AISI304 |
| Diffuser | AISI304 |
| Delivery door | AISI304 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | AISI304 |
| Bearing | Wear Resistant Rubber |
