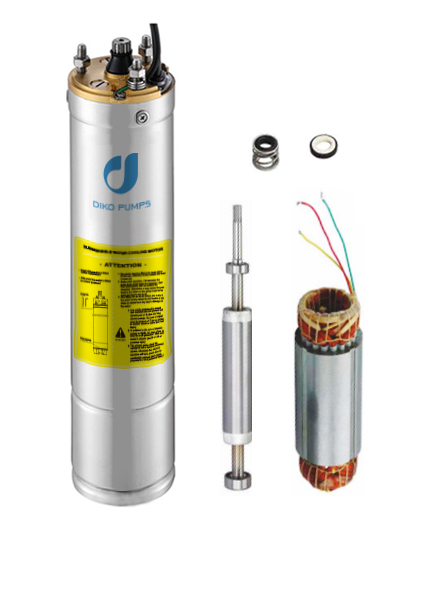

| 3 Inch Oil Filled Motor | ||||||||||||
Voltage |
Single Phase 220/230V 50Hz | 3 Phase 380/415V 50Hz | ||||||||||
Power(KW) |
0.25 | 0.37 | 0.55 | 0.750 | 1.1 | 0.37 | 0.55 | 0.75 | 1.1 | |||
Current(A) |
2.2 | 3.1 | 4 | 5.4 | 8 | 1.8 | 2.1 | 2.5 | 3.5 | |||
RPM |
2800 | 2800 | 2800 | 2800 | 2800 | 2780 | 2780 | 2780 | 2780 | |||
Length(mm) |
358 | 378 | 398 | 438 | 478 | 358 | 378 | 398 | 438 | |||
Weight(kg) |
6 | 6.3 | 6.7 | 7.7 | 8.4 | 6.1 | 6.5 | 6.8 | 7.8 | |||
Features: |
| Conform to international standard of IEC34-1,CE |
| Italian mechanical seal |
| Lacquer coated wire conforms to USA standard of NEMA MW37-C, 220°C- Resistant |
| Maximum temperature of liquid:35°C |
Material: |
| High quality cold-rolled silicon steel lamination. |
| Motor housing and bottom cover are 304 stainless steel. |
| Stator adopts H class (220 degrees) high temperature resistant copper wire. |
| High precision silent bearing, undertaking heavy thrust load. |
