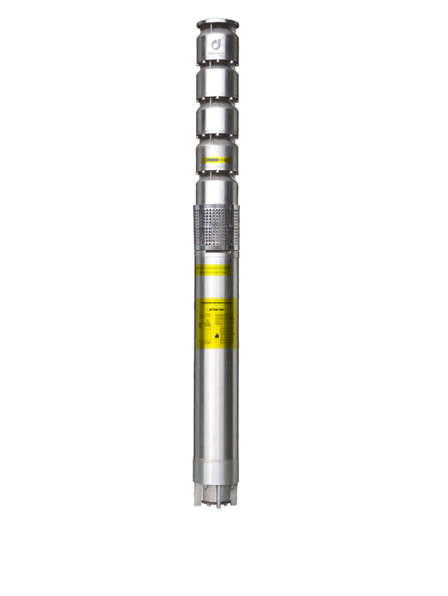

| 8 Inch Precision - Cast Stainless Steel Pump | |||||||
Pump/Motor： |
|||||||
| NEMA standard | |||||||
| Protection grade: IP68 | |||||||

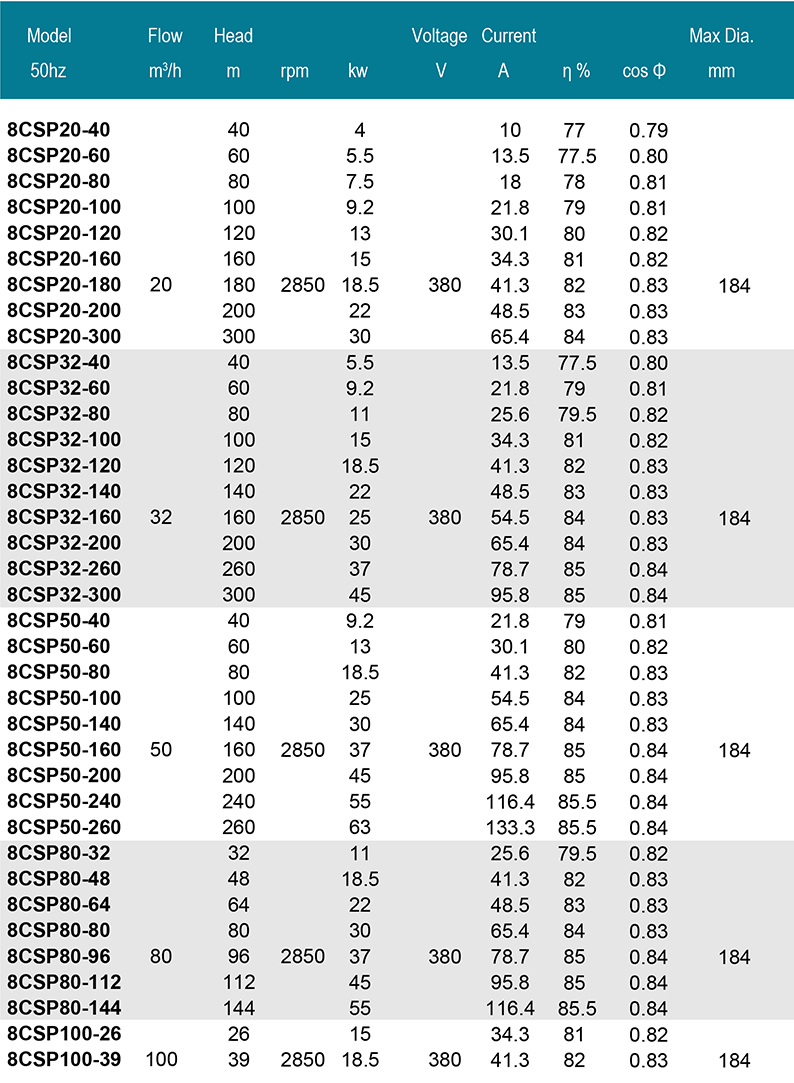

| Type | 8CSP20 |
8CSP32 |
8CSP5O |
8CSP80 |
8CSP100 |
Maximum temperature of liquid:35°C | |
| Normal flow(m3/h) | 20 | 32 | 50 | 80 | 100 | Power: 4kw - 18.5kw | |
| Outlet size | 2' | 3' | 3' | 4' | 4' | Pump is Precision - Cast stainless steel | |
Part |
Material |
| Pump body | AISI304 |
| Impeller | AISI304 |
| Diffuser | AISI304 |
| Delivery door | AISI304 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | AISI304 |
| Bearing | Wear Resistant Rubber |
