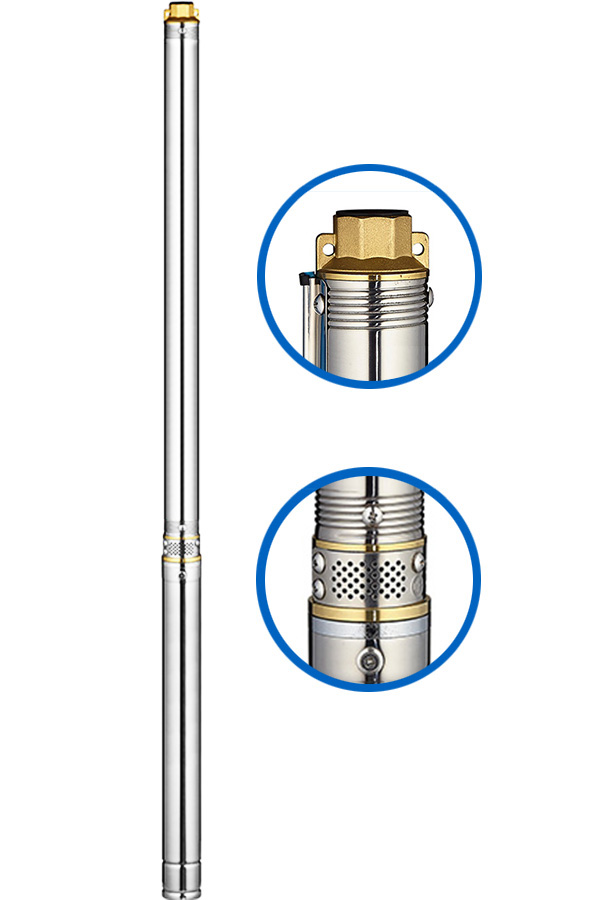

| 2 Inch Plastic Impeller Pump | ||||||||||
|
Pump/Motor: |
|||||||||
| Insulation class: F | ||||||||||
| Type | R2P1 |
Protection grade: IP68 | ||||||||
| Normal flow (m3/h) | 0.7 | Single-phase 110V/60Hz, 220V/60Hz, 220V-240V/50Hz Three-phase 380V-400 V |
||||||||
Outlet size |
1/2' | Maximum temperature of liquid:35°C | ||||||||
| Maximum immersion depth of 60 m | ||||||||||
| Special seal for deep well (Graphite-Ceramic/TC) | ||||||||||
Part |
Material |
| Pump external casing | AISI304 |
| Impeller | Plastic. POM |
| Diffuser | Plastic. PC |
| Delivery door | Cast-Cu ASTM C85500 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | Cast-Cu |
| Bearing | Wear Resistant Rubber |
