| RHD Grinder Pump | ||||||||||||||
Pump/Motor： |
||||||||||||||
| NEMA standard | ||||||||||||||
| Insulation class: F | ||||||||||||||
| Type | RHD220 |
RHD370 |
RHD550 |
RHD750 |
RHD1100 |
Protection grade: IP68 | ||||||||
| Normal flow(m3/h) | 55 | 60 | 70 | 80 | 160 | Maximum temperature of liquid:40°C | ||||||||
| Outlet size | 4' | 4' | 4' | 4' | 4' | 220°C- Resistant lacquer-coated wires | ||||||||
| Double face mechanical seal | ||||||||||||||

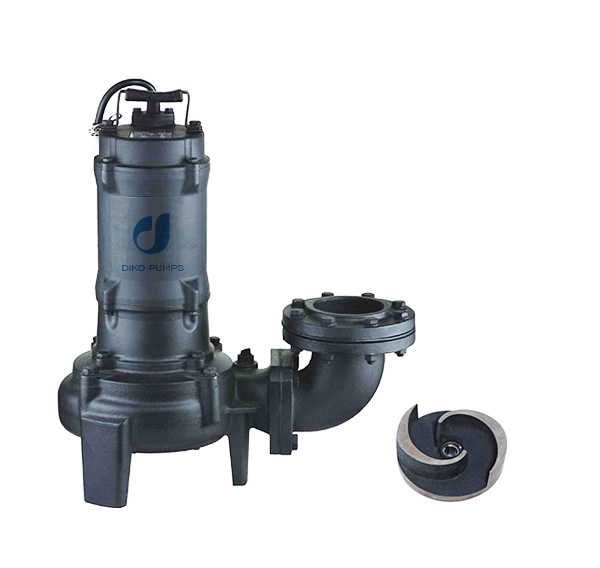

 details.jpg)
Part |
Material |
| Pump body | Cast iron |
| Motor Shell | Cast iron |
| Impeller | QT450-10 Cast iron |
| Diffuser | Cast iron |
| Outlet pipe | Cast iron |
| Suction support | Cast iron |
| Shaft | AISI316 |
| Mechanical seal | Advanced graphite ceramic |
