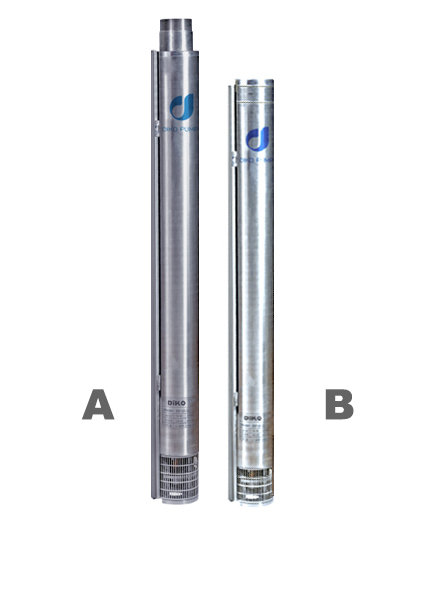

| 4 And 6 Inch 304 S.S. High Head Meters Pump | ||||||||||
Pump/Motor: |
||||||||||
| NEMA standard | ||||||||||
| Protection grade: IP68 | ||||||||||
| Type | 4SPS8 |
6SPS14 |
6SPS17 |
6SPS20 |
6SPS30 |
6SPS46 |
Maximum temperature of liquid:50°C | |||
| Normal flow (m3/h) | 8 | 14 | 17 | 20 | 30 | 46 | Power: 32kw - 75kw | |||
| Outlet size | 2' | 2'1/2_3' | 2'1/2_3' | 2'1/2_3' | 3' | 3'_4' | Pump head meters up to: 1000m | |||
Part |
Material |
| Pump body | AISI304 |
| Impeller | AISI304 |
| Diffuser | AISI304 |
| Delivery door | AISI304 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | AISI304 |
| Bearing | Wear Resistant Rubber |
