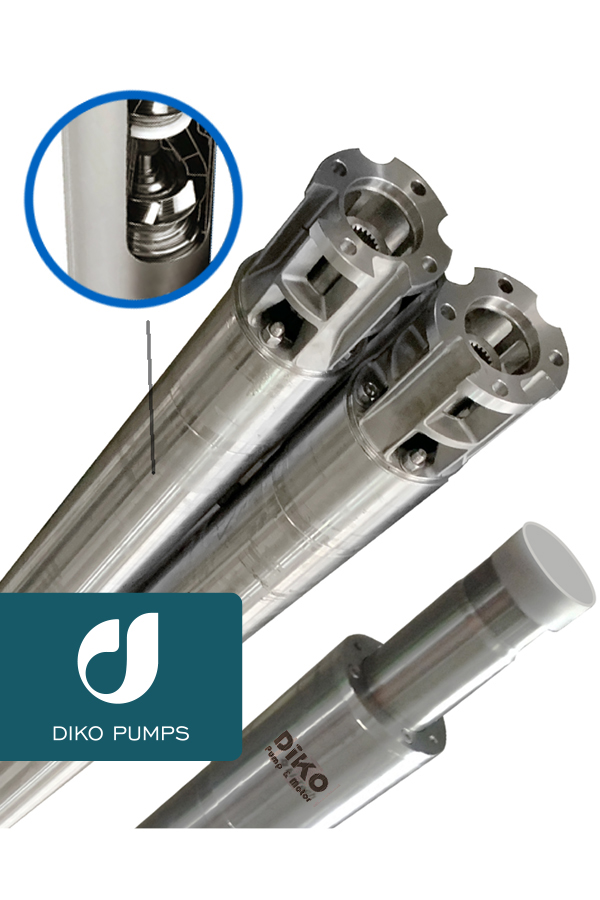

| 4 And 6 Inch Full Stainless Steel Pump (with S.S. sleeve outside) | ||||||||||
Pump/Motor: |
||||||||||
| NEMA standard | ||||||||||
| Insulation class: F | ||||||||||
| Type | 4SPs8 |
6SPs14 |
6SPs17 |
6SPs20 |
6SPs30 |
6SPs46 |
Protection grade: IP68 | |||
| Normal flow (m3/h) | 8 | 14 | 17 | 20 | 30 | 46 | Maximum temperature of liquid:50°C | |||
| Outlet size | 2' | 2'1/2_3' | 2'1/2_3' | 2'1/2_3' | 3' | 3'_4' | 220°C- Resistant lacquer-coated wires | |||
| Dual sealed design | ||||||||||
Part |
Material |
| Pump body | AISI304 |
| Impeller | AISI304 |
| Diffuser | AISI304 |
| Delivery door | AISI304 |
| Suction support | AISI304 |
| Sunction strainer | AISI304 |
| Shaft | AISI304 |
| Coupling | AISI304 |
| Check valve | AISI304 |
| Bearing | Wear Resistant Rubber |
